PRODUCT
Maximum Electric Current:
| A.W.G. | 22 | 20 | 18 | 16 | 14 | 12 | 10 |
| AMP. | 9 | 12 | 17 | 18 | 30 | 35 | 50 |
Maximum Electrical Rating: 600 Volts Max. Insulation Material: High Density Pe. With Copper Sleeve On Barrel Insulation Color:
Maximum Electric Current:
| A.W.G. | 22 | 20 | 18 | 16 | 14 | 12 | 10 |
| AMP. | 9 | 12 | 17 | 18 | 30 | 35 | 50 |
Maximum Electrical Rating: 300 Volts Max. Insulation Material: High Density Pe. With Copper Sleeve On Barrel Insulation Color:

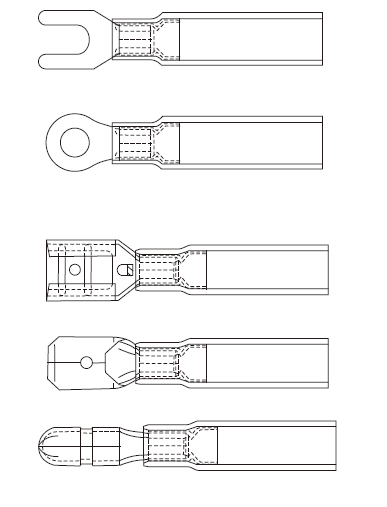

端头类型说明Terminal Category Introduction
| A |
| 110：0.110＂(2.8mm) |
| 187：0.187＂ (4.75mm) |
| 205：0.205＂ (5.2mm) |
| 250：0.250＂ (6.35mm) |
| 312：0.312＂(8.0mm) |
| 375：0.375＂(9.4mm) |
| 156：0.156＂ (4mm) |
| 195：0.195＂(5mm) |
| B | ||
| 导线号 | 使用导线截面(mm²) | 美国线规(A.WG) |
| 1.25 | 0.5-1.5 | 22-16 |
| 2 | 1.5-2.5 | 16-14 |
| 3.5 | 2.5-4 | 14-12 |
| 5.5 | 4-6 | 12-10 |
| 8 | 6-10 | 8 |
| 14 | 10-16 | 6 |
| 22 | 16-25 | 4 |
| 38 | 25-35 | 2 |
| 60 | 50-70 | 1/0 |
| 70 | 70-95 | 2/0 |
| 80 | 95-120 | 3/0 |
| 100 | 120-150 | 4/0 |
| 150 | 150-185 | 250/300MCM |
| 180 | 185-240 | 300/350MCM |
| 200 | 240-300 | 400/500MCM |
| 325 | 300-400 | 500/600MCM |
| C | |
| 螺栓通过口直径(mm) | 美制螺栓号 |
| 3.2 | #4 |
| 3.7 | #6 |
| 4.3 | #8 |
| 5.3 | #10 |
| 6.4 | 1/4 |
| 8.4 | 5/16 |
| 10.5 | 3/8 |
| 11.0 | 7/6 |
| 13.0 | 1/ 2 |
| 15.0 | 9/16 |
| 17.0 | 5/8 |
| 18.0 | 11/16 |
| 21.0 | 3/4 |
| 23.0 | 7/8 |
| 25.0 | 15/16 |
| 28.0 | 1 |
