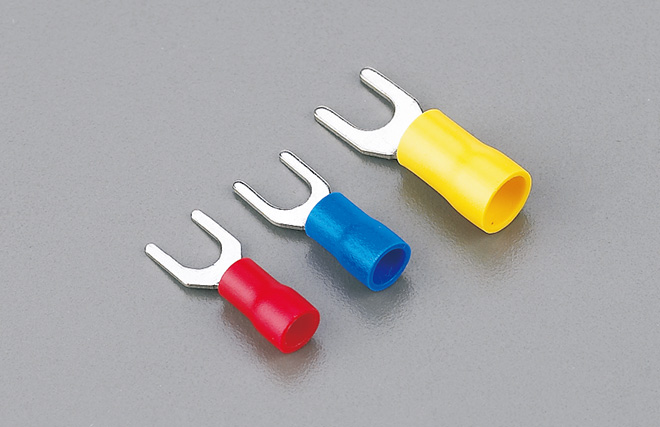

PRODUCT

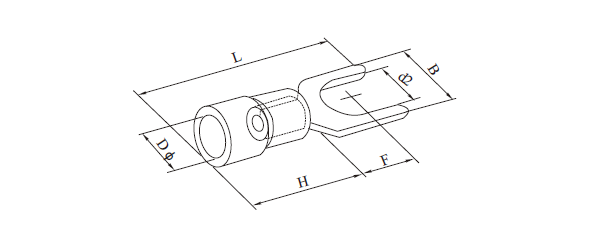

| 编 号 Item NO. | 美制 螺栓号 | 螺栓口直径 screw dia. d2(mm) | 尺寸Dimension | 颜色 Color | |||||
| B (mm) | L (mm) | F (mm) | H (mm) | D φ (mm) | |||||
| 导线截面: 2 0.5~1.5mm² (22-16) 最大电流: Imax=19A | SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | 红 Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS1.25-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | ||||
| SVL1.25-6 | 1/4 | 6.5 | 12.0 | 21.2 | 11.0 | ||||
| 导线截面: 2 1.5~2.5mm ²(16~14) 最大电流: Imax=27A | SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | 兰 blue |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL2-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS2-4 | #8 | 4.3 | 6.0 | 21.2 | 6.5 | ||||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS2-6 | 1/4 | 6.5 | 9.5 | 21.2 | 11.0 | ||||
| SVL2-6 | 1/4 | 6.5 | 12.0 | 21.2 | 7.0 | ||||
| 导线截面: 2 2.5~4mm² (14~12) 最大电流: Imax=37A | SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | 12.5 | 6.2 | 黑 black |
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 12.1 | ||||
| SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 7.5 | ||||
| 导线截面: 2 4~6mm² (12~10) 最大电流: Imax=48A | SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | 黄 yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | ||||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 23.9 | 7.5 | ||||
| SV5.5-5 | #10 | 5.3 | 9.0 | 23.9 | 7.5 | ||||
| SVS5.5-6 | 1/4 | 6.5 | 9.0 | 23.9 | 7.5 | ||||
| SVL5.5-6 | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 | ||||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | ||||
