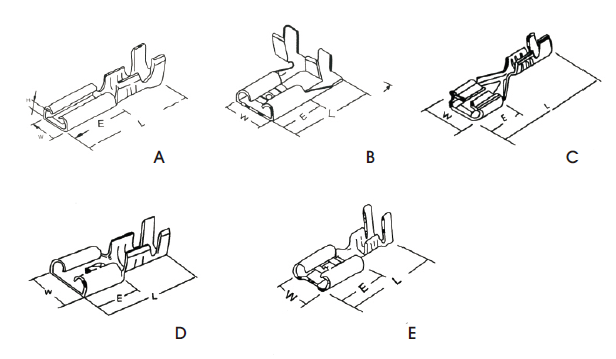

| 图 Fig | 编 号 Item NO. | 材质 Metal | 适用电线 Wire Range | 尺寸 Dimension(mm) | 材料厚度 Thickness | ||
| W | L | E | |||||
| A | DJ621-E2.8×0.5B | Brass | 1.0-1.5 | 4.1 | 16.0 | 6.6 | 0.3 |
| A | DJ621-D2.8×0.5A | 0.5-0.8 | 3.7 | 15.1 | 6.3 | 0.25 | |
| A | DJ621-E4.8×0.5A | 0.5-0.8 | 6.0 | 13.8 | 0.3 | ||
| B | DJ625-4.8×0.8A | 0.5-0.8 | 6.4 | 12.0 | 6.2 | 0.4 | |
| C | DJ621-5A | 0.5-0.8 | 5.2 | 17 | 5.5 | 0.3 | |
| C | DJ621-5B | 1.0-1.5 | 5.2 | 17 | 5.5 | 0.3 | |
| D | DJ622-A6.3B | 1.0-1.5 | 7.7 | 18.5 | 7.5 | 0.4 | |
| E | DJ622-D6.3B | 1.0-1.5 | 7.7 | 17.5 | 7.5 | 0.4 | |
