PRODUCT
| 编 号 Item NO. |
Stud Size | 尺寸Dimension | 颜色 Color |
使用 工具 use the tools |
说明 Explanation |
||||||||
| 螺栓口直径 Metric |
美制螺栓号 American |

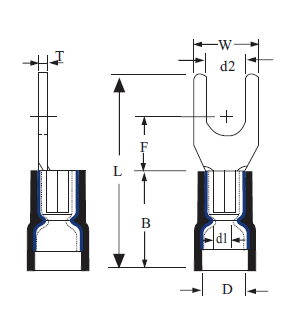

d2 | W | F | L |
B | d1 | D | T | ||||

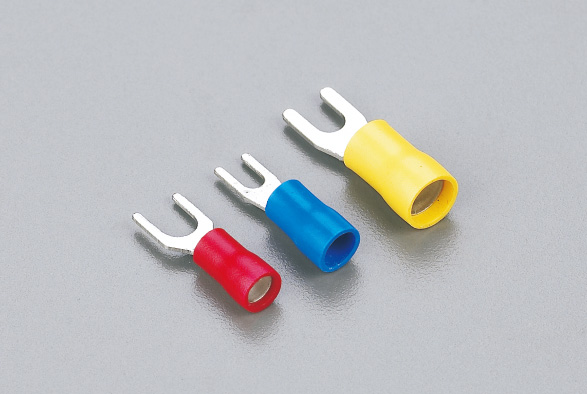

| SD1.25-3 | 3 | #4 | 3.2 | 5.7 | 6.5 | 21.2 | 10.0 | 1.7 | 4.5 | 0.7 | 红 Red |
30J | 端头材料：紫铜 绝缘材质：PVC加铜套 2 导线截面：0.5-1.5mm² 最大电流：Imax＝19A 最大耐温：75℃ 2 Wire range：0.5-1.5mm² A.W.G：(22-16) Max.current＝19A |
| SDS1.25-3.5 | 3.5 | #6 | 3.7 | ||||||||||
| SDL1.25-3.5 | 3.5 | #6 | 3.7 | 6.4 | |||||||||
| SDS1.25-4 | 4 | #8 | 4.3 | 6.4 | |||||||||
| SDM1.25-4 | 4 | #8 | 4.3 | 7.2 | |||||||||
| SDL1.25-4 | 4 | #8 | 4.3 | 8.1 | |||||||||
| SDS1.25-5 | 5 | #10 | 5.3 | ||||||||||
| SDL1.25-5 | 5 | #10 | 5.3 | 9.5 | |||||||||
| SDS1.25-6 | 6 | 1/4" | 6.5 | ||||||||||
| SDL1.25-6 | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 27.2 | |||||||
| SD1.25-8 | 8 | 5/16" | 8.5 | 13.5 | 11.5 | 26.7 | |||||||
| SD2-3.2 | 3 | #4 | 3.2 | 5.7 | 6.5 | 31.2 | 10.0 | 2.3 | 5.0 | 0.8 | 蓝 Blue |
30J | 端头材料：紫铜 绝缘材质：PVC加铜套 2 导线截面：1.5-2.5mm² 最大电流：Imax＝27A 最大耐温：75℃ 2 Wire rang1.5-2.5mm² A.W.G：(16-14) Max.current＝27A |
| SDS2-3.5 | 3.5 | #6 | 3.7 | ||||||||||
| SDL2-3.5 | 3.5 | #6 | 3.7 | 6.4 | |||||||||
| SDS2-4 | 4 | #8 | 4.3 | 6.4 | |||||||||
| SDM2-4 | 4 | #8 | 4.3 | 7.2 | |||||||||
| SDL2-4 | 4 | #8 | 4.3 | 8.1 | |||||||||
| SDS2-5 | 5 | #10 | 5.3 | ||||||||||
| SDL2-5 | 5 | #10 | 5.3 | 9.5 | |||||||||
| SDS2-6 | 6 | 1/4" | 6.5 | ||||||||||
| SDL2-6 | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 27.2 | |||||||
| SD2-8 | 8 | 5/16" | 8.5 | 13.5 | 11.5 | 27.0 | |||||||
| SD5.5-3.5 | 3.5 | #6 | 3.7 | 8.3 | 8.3 | 25.5 | 13.0 | 3.4 | 6.7 | 1.0 | 黄 Yellow |
30J | 端头材料：紫铜 绝缘材质：PVC加铜套 2 导线截面：4-6mm² 最大电流：Imax＝48A 最大耐温：75℃ 2 Wire rang：4-6mm² A.W.G：(12-10) Max.current＝48A |
| SDS5.5-4 | 4 | #8 | 4.3 | 8.3 | 7.0 | 25.5 | |||||||
| SDL5.5-4 | 4 | #8 | 4.3 | 9.0 | |||||||||
| SD5.5-5 | 5 | #10 | 5.3 | ||||||||||
| SDS5.5-6 | 6 | 1/4" | 6.5 | ||||||||||
| SDL5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 12.0 | 31.7 | |||||||
| SD5.5-8 | 8 | 5/16" | 8.5 | 14.0 | 11.0 | 30.7 | |||||||
