| 编 号 Item NO. | 材料厚度 Thickness of material (mm) | 尺寸Dimension | 颜色 Color | ||||||

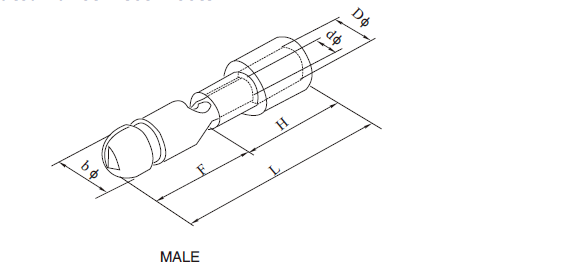

| b φ (mm) | F (mm) | D φ (mm) | d φ (mm | H (mm) | L (mm) | ||||

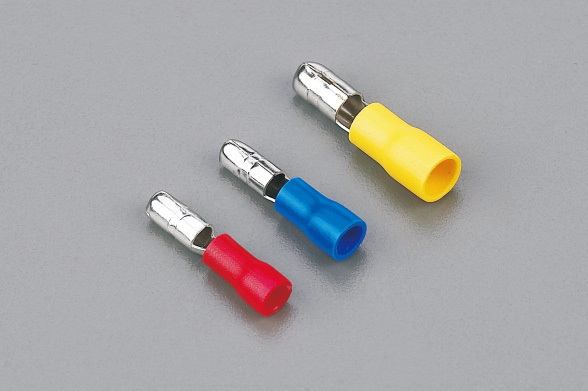

| 导线截面: 0.5~1.5mm² (22-16) 最大电流:Imax=10A | MPD1.25-156 | 0.4 | 4.0 | 11.0 | 2.7 | 1.7 | 10.0 | 21.0 | 红 Red |
| 导线截面: 1.5~2.5mm² (16~14) 最大电流:Imax=15A | MPD2-156 | 0.4 | 4.0 | 16.0 | 2.7 | 1.7 | 10.0 | 21.0 | 蓝 blue |
| MPD2-195 | 0.4 | 5.0 | 16.0 | 2.7 | 1.7 | 10.0 | 21.0 | ||
| 导线截面: 4~6mm² (12~10) 最大电流:Imax=24A | MPD5.5-195 | 0.4 | 5.0 | 11.0 | 4.5 | 3.4 | 14.0 | 25.0 | 黄 yellow |
