PRODUCT

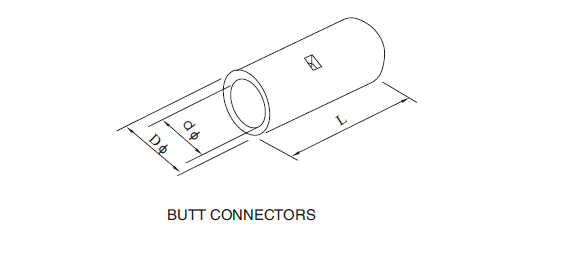

| 编 号 Item NO. | 尺寸dimension | 尺寸 Dimension | |||
| L(mm) | D(mm) | d(mm) | A.W.G | mm² | |
| BN1.25 | 15.0 | 3.3 | 1.7 | 22-16 | 0.5-1.5 |
| BN2 | 15.0 | 4.0 | 2.3 | 16-14 | 1.5-2.5 |
| BN3.5 | 15.0 | 5.0 | 3.0 | 14-12 | 2.5-4 |
| BN5.5 | 15.0 | 5.5 | 3.4 | 12-10 | 4-6 |
| BN8 | 21.0 | 7.1 | 4.5 | #8 | 10 |
| BN14 | 26.0 | 9.0 | 5.8 | #6 | 16 |
| BN22 | 29.0 | 11.4 | 7.7 | #4 | 25 |
| BN38 | 32.0 | 13.3 | 9.4 | #2 | 35 |
| BN60 | 36.0 | 15.4 | 11.4 | 1/0 | 50 |
| BN70 | 37.0 | 17.5 | 13.3 | 2/0 | 70 |
| BN80 | 38.0 | 19.4 | 14.5 | 3/0 | 95 |
| BN100 | 38.0 | 22.0 | 16.4 | 4/0 | 120 |
| BN150 | 54.0 | 26.5 | 19.5 | 250-300MCM | 150 |
| BN180 | 57.0 | 28.5 | 21.0 | 300-350MCM | 185 |
| BN200 | 63.0 | 32.5 | 24.0 | 400MCM | 240 |
| BN325 | 72.0 | 37.0 | 28.0 | 500-600MCM | 300 |
